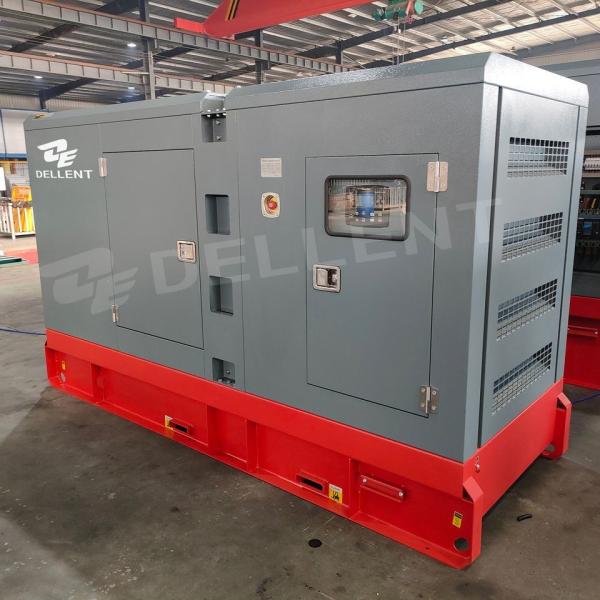

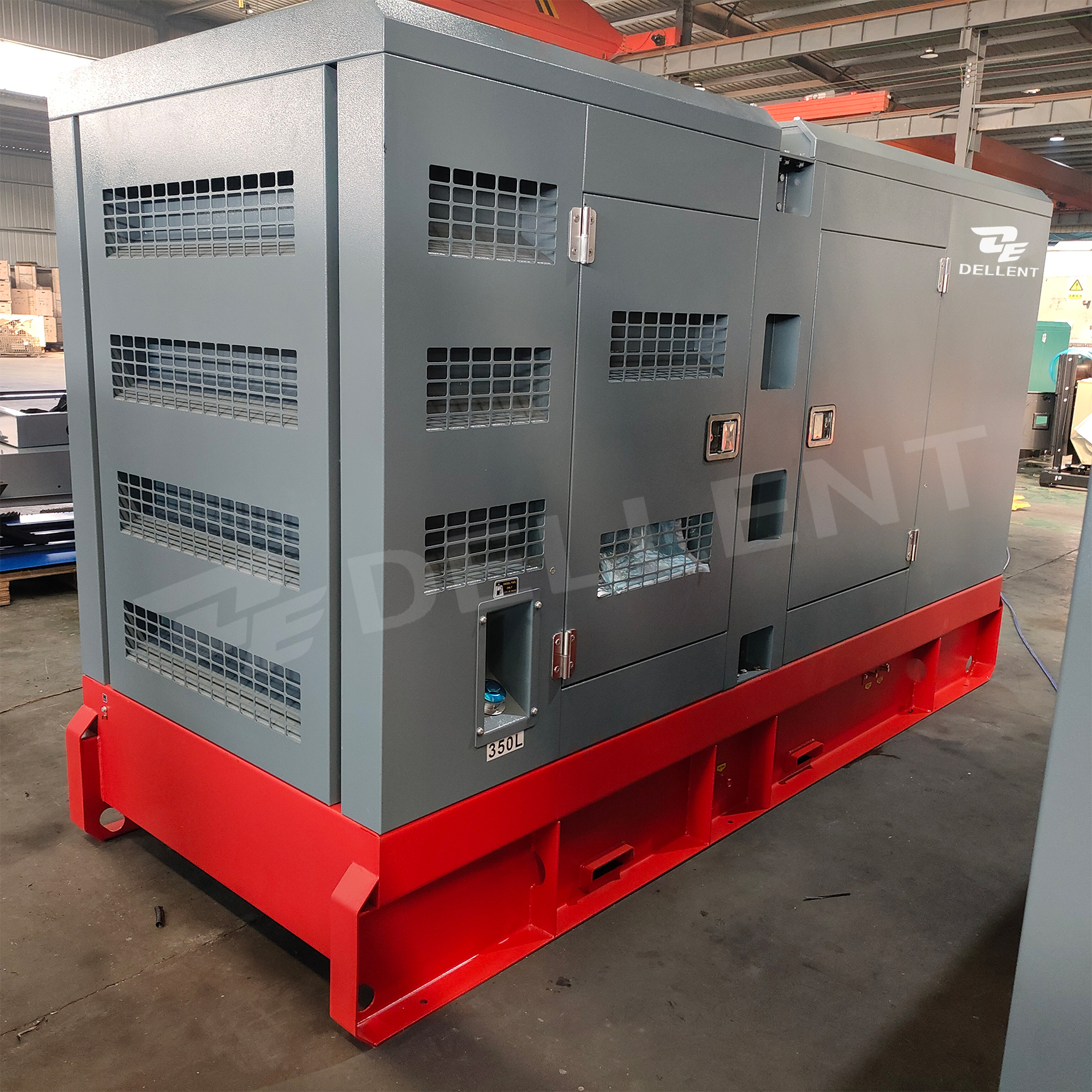

188kVA Diesel Generator Powered by SDEC Diesel Engine:
| Model | DE-SC206SC |
| Max. Power | kVA | 188 |
| kW | 150 |
| Rate Power | kVA | 206 |
| kW | 165 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 270.6 |

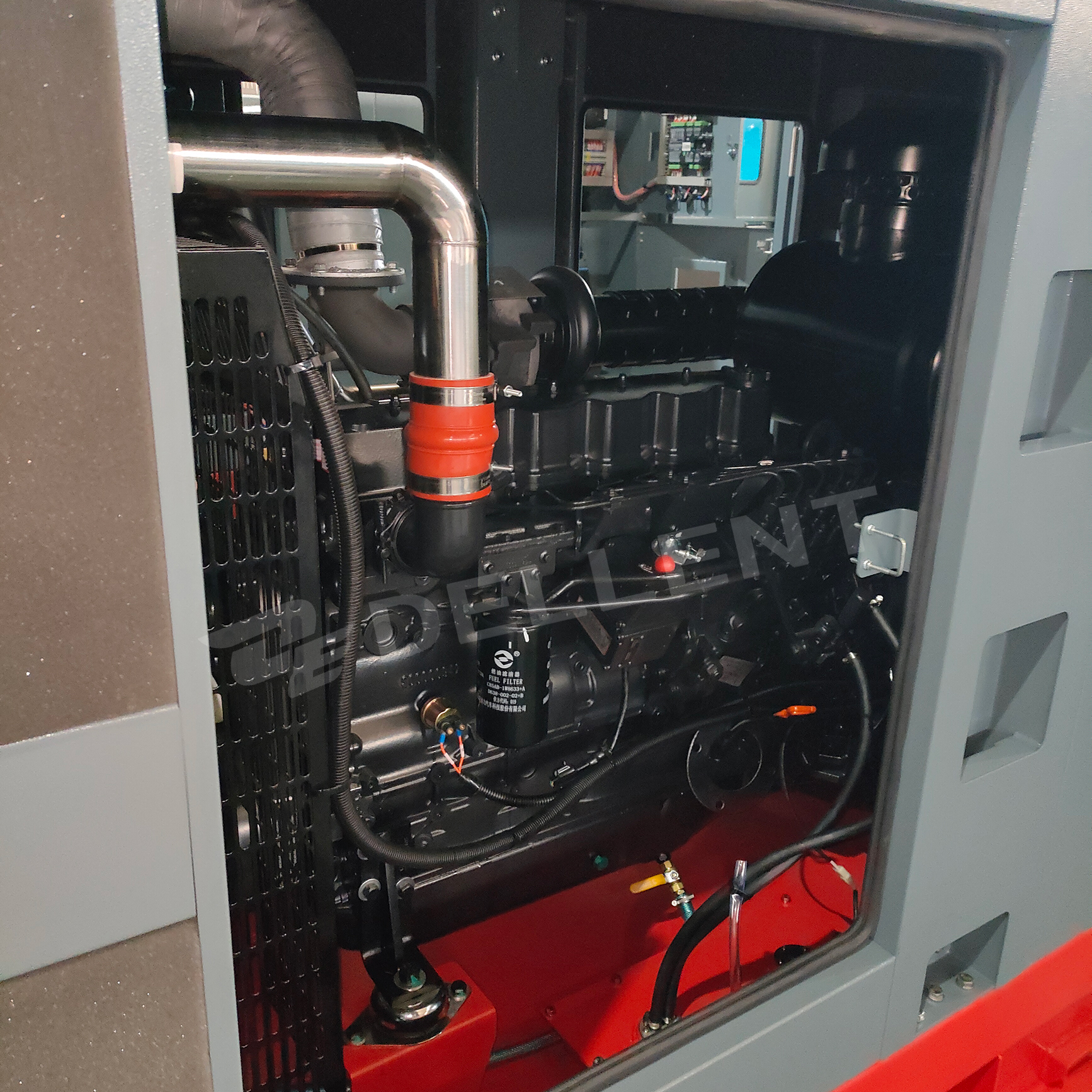

SDEC Diesel Engine:
| Engine Specification |
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. |
| Engine Brand | SDEC |
| Engine Model | SC7H250D2 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 185 |
| Displacement | L | 4.300 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 11-13 |
| Compression Ratio | 16 : 1 |
| Intake Air Flow | M3/Min | 6.8 |
| Fuel Consumption at 100% Load | L/H | 23.0 |
Specification of Control Panel:
| Control Panel Specification |
| Controller Brand | Smartgen |
| Breaker Brand | Delixi |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AFM Function |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). |
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
1: On site: Due to the advantages of high efficiency, energy conservation, and strong load capacity, diesel generators are commonly used on site to provide power supply for construction sites, mines, etc;
2: Rural areas: Diesel generators can provide power supply in rural areas without stable power grids to meet the electricity needs of rural residents;
3: Ship field: Diesel generators can provide power supply for ships to meet their navigation and living needs;
4: Emergency backup power supply: Diesel generators can serve as emergency backup power sources to provide power support for important places such as hospitals, banks, telecommunications, etc;
5: Other fields: Diesel generators can also be applied in fields such as power engineering, military, aerospace, etc;
6: Diesel generators can be applied to different climatic conditions, including cold, hot, and other climatic conditions
